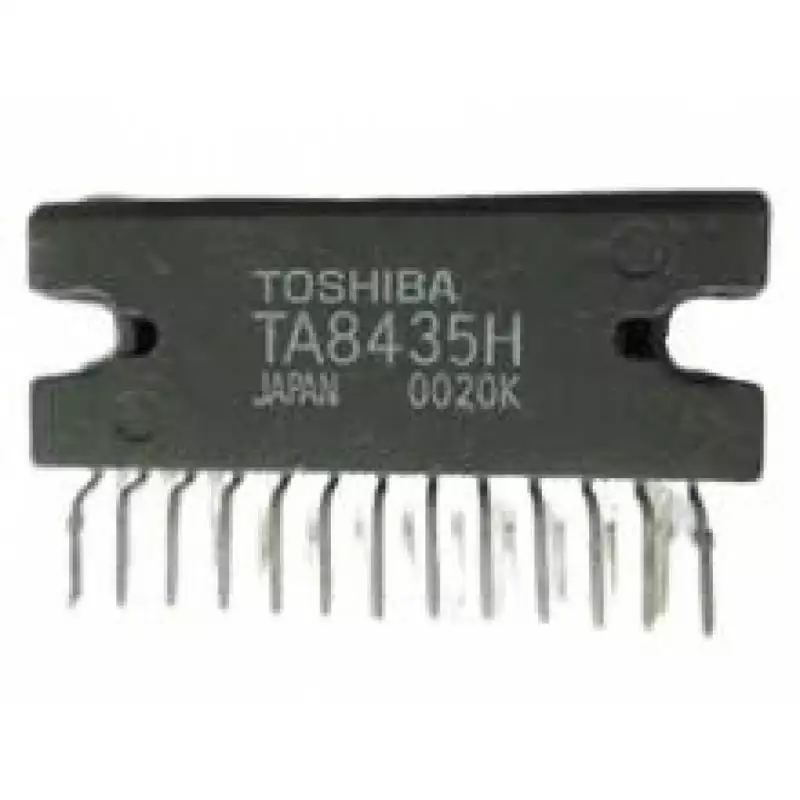

Toshiba TA8435H
Id do Produto: 305
PWM CHOPPER TYPE BIPOLAR STEPPING MOTOR DRIVER.
The TA8435H is PWM chopper type sinusoidal micro step bipolar
stepping motor driver.
Sinusoidal micro step operation is accomplished only a clock
signal inputting by means of built?in hard ware.
FEATURES
1 chip bipolar sinusoidal micro step stepping motor driver.
Output current up to 1.5 A (AVE.) and 2.5 A (PEAK).
PWM chopper type.
Structured by high voltage Bi?CMOS process technology.
Forward and reverse rotation are available.
2, 1?2, W1?2, 2W1?2 phase 1 or 2 clock drives are selectable.
Package : HZIP25?P
Input Pull?up Resistor equipped with RESET Terminal: R =
100 k?(Typ.)
Output Monitor available with MO IO(MO) = ±2 mA (MAX.)
Reset and Enable are available with RESET and ENABLE.
The TA8435H is PWM chopper type sinusoidal micro step bipolar
stepping motor driver.
Sinusoidal micro step operation is accomplished only a clock
signal inputting by means of built?in hard ware.
FEATURES
1 chip bipolar sinusoidal micro step stepping motor driver.
Output current up to 1.5 A (AVE.) and 2.5 A (PEAK).
PWM chopper type.
Structured by high voltage Bi?CMOS process technology.
Forward and reverse rotation are available.
2, 1?2, W1?2, 2W1?2 phase 1 or 2 clock drives are selectable.
Package : HZIP25?P
Input Pull?up Resistor equipped with RESET Terminal: R =
100 k?(Typ.)
Output Monitor available with MO IO(MO) = ±2 mA (MAX.)
Reset and Enable are available with RESET and ENABLE.
