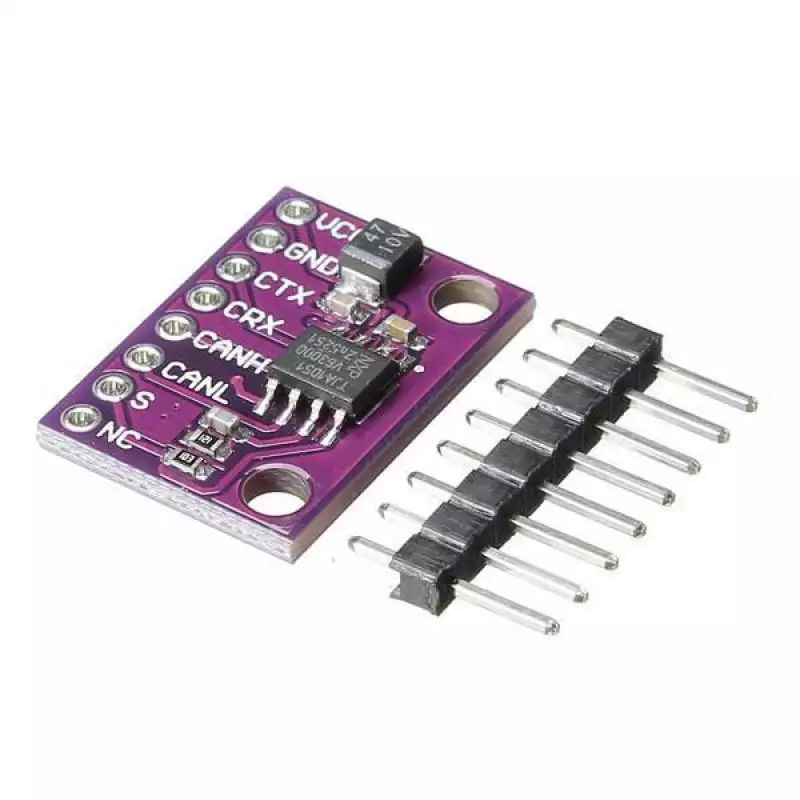

TJA1051 high-speed CAN transceiver

The TJA1051 is a high-speed CAN transceiver that provides an interface between a
Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus.
The transceiver is designed for high-speed CAN applications in the automotive industry,
providing differential transmit and receive capability to (a microcontroller with) a CAN
protocol controller.

? ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
? Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
? Suitable for 12 V and 24 V systems
? Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
? VIO input on TJA1051T/3 and TJA1051TK/3 allows for direct interfacing with 3 V to 5 V
microcontrollers (available in SO8 and very small HVSON8 packages respectively)
? EN input on TJA1051T/E allows the microcontroller to switch the transceiver to a very
low-current Off mode
? Available in SO8 package or leadless HVSON8 package (3.0 mm ? 3.0 mm) with
improved Automated Optical Inspection (AOI) capability
? Dark green product (halogen free and Restriction of Hazardous Substances (RoHS)
compliant)
? AEC-Q100 qualified
