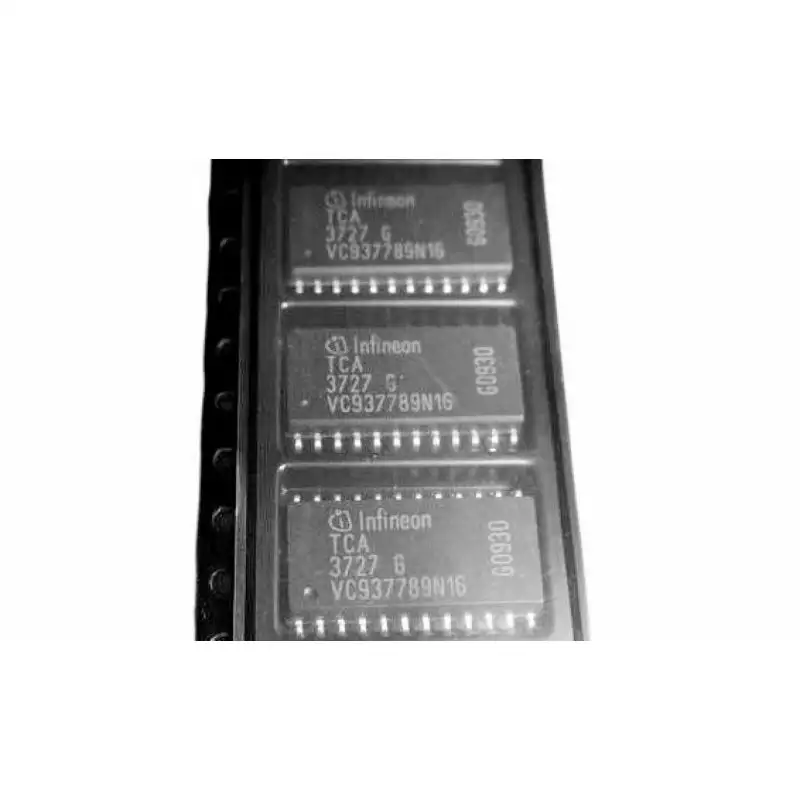

TCA3727 smd
Id do Produto: 469
TCA3727G is a bipolar, monolithic IC for driving bipolar stepper motors, DC motors and other inductive loads that
operate on constant current. The control logic and power output stages for two bipolar windings are integrated on
a single chip which permits switched current control of motors with 0.75 A per phase at operating voltages up to
50 V
2 × 0.75 amp. / 50 V outputs
• Integrated driver, control logic and current control
(chopper)
• Fast free-wheeling diodes
• Max. supply voltage 52 V
• Outputs free of crossover current
• Offset-phase turn-ON of output stages
• Z-diode for logic supply
• Low standby-current drain
• Full, half, quarter, mini step
• Green (RoHS compliant) thermally enhanced SO package
• AEC Qualified
operate on constant current. The control logic and power output stages for two bipolar windings are integrated on
a single chip which permits switched current control of motors with 0.75 A per phase at operating voltages up to
50 V
2 × 0.75 amp. / 50 V outputs
• Integrated driver, control logic and current control
(chopper)
• Fast free-wheeling diodes
• Max. supply voltage 52 V
• Outputs free of crossover current
• Offset-phase turn-ON of output stages
• Z-diode for logic supply
• Low standby-current drain
• Full, half, quarter, mini step
• Green (RoHS compliant) thermally enhanced SO package
• AEC Qualified
