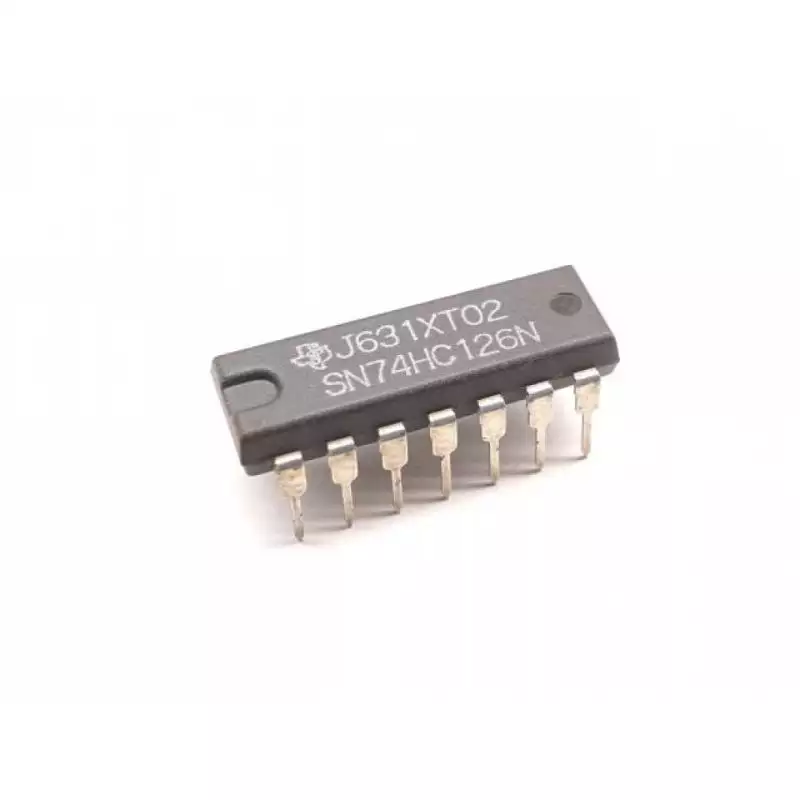

SN74HC126N
Id do Produto: 396
SN74HC126N - Bus Buffer, 74HC126, 2 Input, 2 V to 6 V, DIP-14
TEXAS INSTRUMENTS
The SN74HC126N is a quadruple Bus Buffer Gate with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is low. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-up resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver.
80µA Maximum ICC low power consumption
11ns Typical tpd
1µA Maximum low input current
±6mA Output drive at 5V
TEXAS INSTRUMENTS
The SN74HC126N is a quadruple Bus Buffer Gate with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is low. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-up resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver.
80µA Maximum ICC low power consumption
11ns Typical tpd
1µA Maximum low input current
±6mA Output drive at 5V
