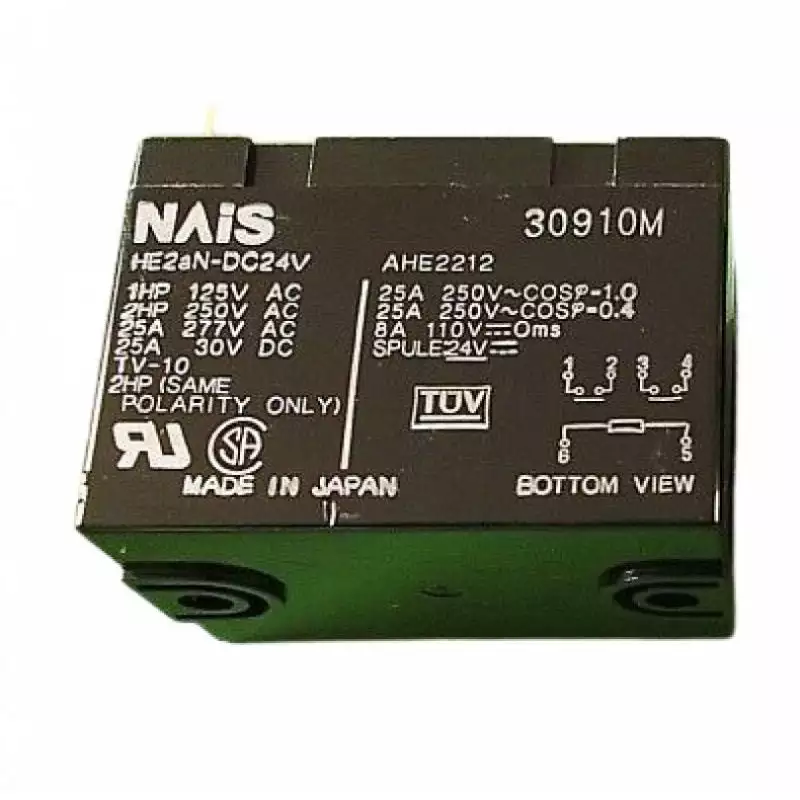

Relé HE2AN-DC24V

Physical

•
  Case/Package 300
•
  Contact Material Silver, Tin
•
  Mount Chassis Mount, PCB, Plug-In
•
  Number of Pins 6
•
  Weight 90 g

Technical

•
  Ambient Temperature Range High 55 °C
•
  Coil Current 80 mA
•
  Coil Power 1.92 W
•
  Coil Resistance 300 ?
•
  Coil Type Non-Latching
•
  Coil Voltage (DC) 24 V
•
  Contact Current Rating 25 A
•
  Current Rating 25 A
•
  Max Current Rating 25 A
•
  Max Operating Temperature 55 °C
•
  Max Voltage Rating (AC) 277 V
•
  Max Voltage Rating (DC) 30 V
•
  Manufacturer Package Identifier HE2AN-DC24V
•
  Min Operating Temperature -50 °C
•
  Number of Contacts 2
•
  Operate Time 30 ms
•
  Packaging Bulk
•
  Power Consumption 1.92 W
•
  Relay Type General Purpose
•
  Release Time 10 ms
•
  Switching Capacity 6.925 kW
•
  Switching Current 25 A
•
  Termination Plug
•
  Test Voltage 10 kV
•
  Throw Configuration DPST
•
  Voltage Rating (AC) 277 V
•
  Voltage Rating (DC) 30 V
•
  Dimensions
•
  Depth 33 mm
•
  Height 35 mm
•
  Length 50 mm
•
  Compliance
•
  Approvals CSA, TUV, UL, VDE
•
  Lead Free Lead Free
•
  Radiation Hardening No
•
  Ratings IP40
•
  REACH SVHC Unknown
•
  RoHS Compliant
