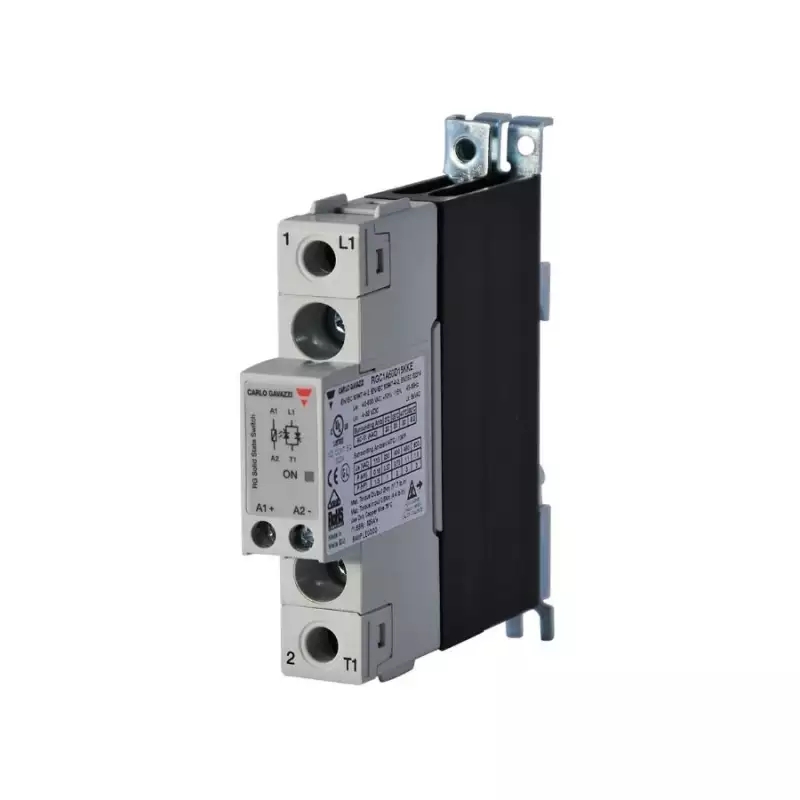

Relé de estado sólido Zero Cross 30Aac 600V RGC1A60D30KKE

• Product width ranging from 17.5mm up to 70mm

• Ratings: up to 660 VAC, 85 AAC @ 40 °C

• 18000 A2s for the I2t and 1200 Vp blocking voltage

• Control voltages: 3-32 VDC, 20-275 VAC (24-190 VDC)

• Design according to EN/IEC60947-4-2, EN/IEC60947-4-3,
EN/IEC62314, UL508, CSA 22-2 No. 14-13

• Conformance to Railway standards
• Integrated voltage transient protection with varistor

• 100 kA short circuit current rating according to UL508
