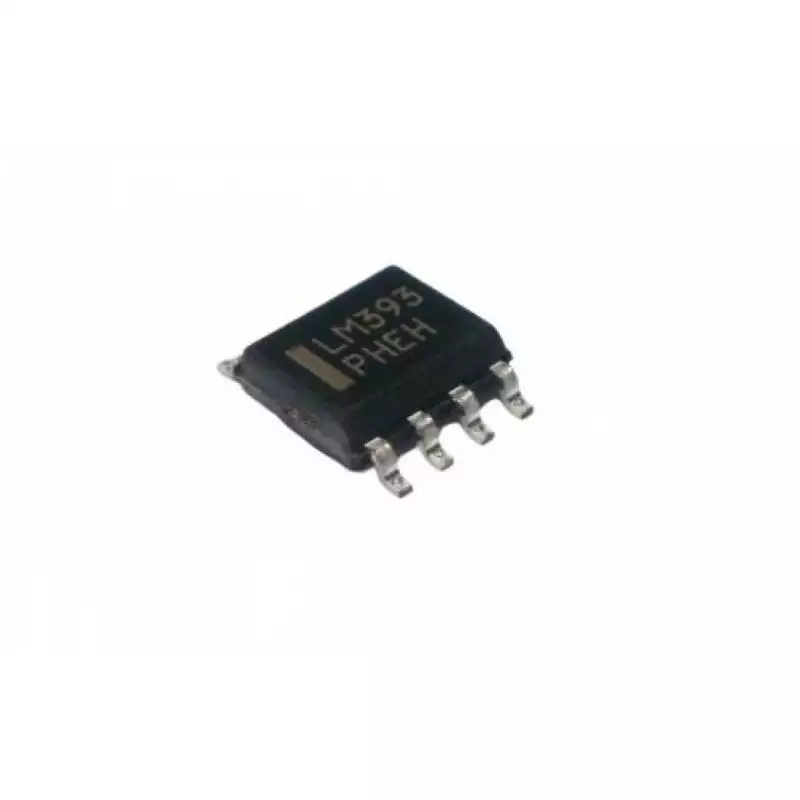

LM393 smd

LMx93-N, LM2903-N Low-Power, Low-Offset Voltage, Dual Comparators

Wide Supply
– Voltage Range: 2.0 V to 36 V
– Single or Dual Supplies: ±1.0 V to ±18 V
• Very Low Supply Current Drain (0.4 mA) —
Independent of Supply Voltage
• Low Input Biasing Current: 25 nA
• Low Input Offset Current: ±5 nA
• Maximum Offset voltage: ±3 mV
• Input Common-Mode Voltage Range Includes
Ground
• Differential Input Voltage Range Equal to the
Power Supply Voltage
• Low Output Saturation Voltage: 250 mV at 4 mA
• Output Voltage Compatible with TTL, DTL, ECL,
MOS and CMOS logic systems
• Available in the 8-Bump (12 mil) DSBGA Package
• See AN-1112 (SNVA009) for DSBGA
Considerations
• Advantages
– High Precision Comparators
– Reduced VOS Drift Over Temperature
– Eliminates Need for Dual Supplies
– Allows Sensing Near Ground
– Compatible with All Forms of Logic
– Power Drain Suitable for Battery Operation
2 Applications
• Battery Powered Applications
• Industrial Applications
