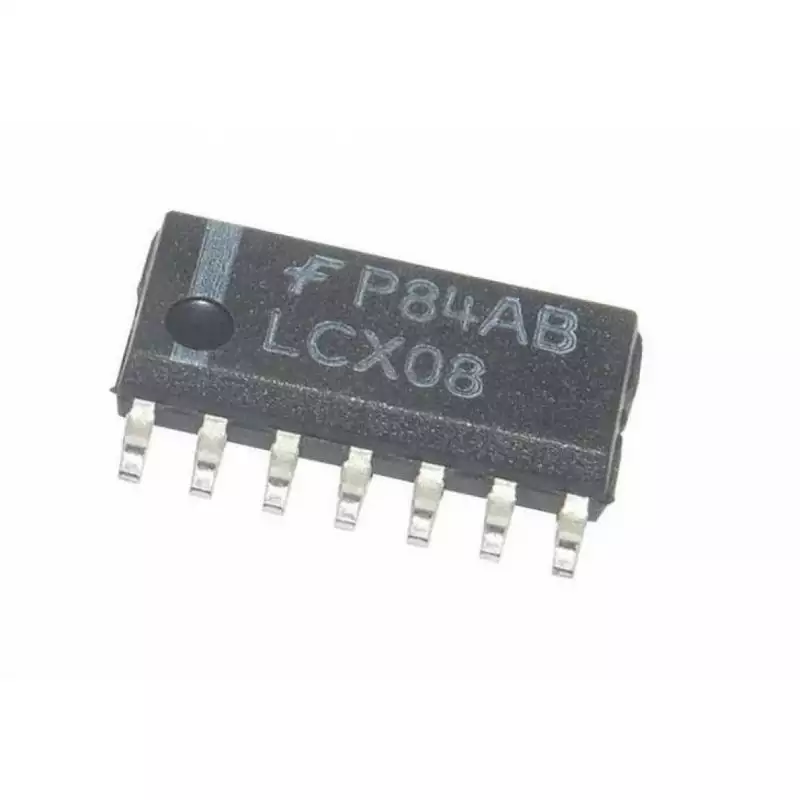

LCX08 SMD
Id do Produto: 342
The LCX08 contains four 2-input AND gates. The inputs tolerate voltages up to 7V allowing the interface of 5V systems
to 3V systems.
Features
n 5V tolerant inputs
n 5.5 ns tPD max, 10 µA ICCQ max
n Power down high impedance inputs and outputs
Supports live insertion/withdrawal
n 2.0V–3.6V VCC supply operation
n ±24 mA output drive
n Implements patented noise/EMI reduction circuitry
n Functionally compatible with 74 series 08
n Latch-up performance exceeds 500 mA
n ESD performance:
Human body model > 2000V
Machine model > 150V
to 3V systems.
Features
n 5V tolerant inputs
n 5.5 ns tPD max, 10 µA ICCQ max
n Power down high impedance inputs and outputs
Supports live insertion/withdrawal
n 2.0V–3.6V VCC supply operation
n ±24 mA output drive
n Implements patented noise/EMI reduction circuitry
n Functionally compatible with 74 series 08
n Latch-up performance exceeds 500 mA
n ESD performance:
Human body model > 2000V
Machine model > 150V
