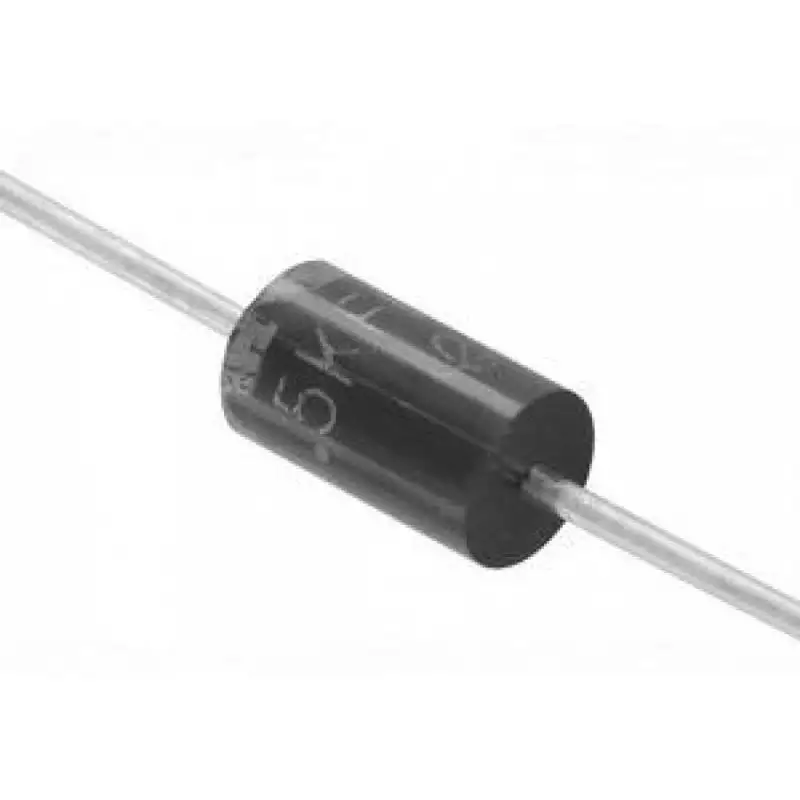

Diodo Supressor 1,5KE33A

The TP1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:
Hi reliability application and automotive grade AEC-Q101 qualified
Glass passivated chip junction in DO-201 Package
1500W peak pulse capability at 10/1000?s waveform, repetition rate (duty cycles):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to BV min
Excellent clamping capability
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2
EFT protection of data lines in accordance with IEC 61000-4-4
Low incremental surge resistance
High temperature to reflow soldering guaranteed: 260°C/10sec / 0.375”,(9.5mm) lead length, 5 lbs., (2.3kg) tension
VBR @ TJ= VBR@25°C x (1+?T x (TJ - 25)) (?T: Temperature Coefficient, typical value is 0.1%)
Plastic package is flammability rated V-0 per Underwriters Laboratories
Matte tin lead–free plated
Halogen free and RoHS compliant
Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD- 609A.01)

Applications:
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
