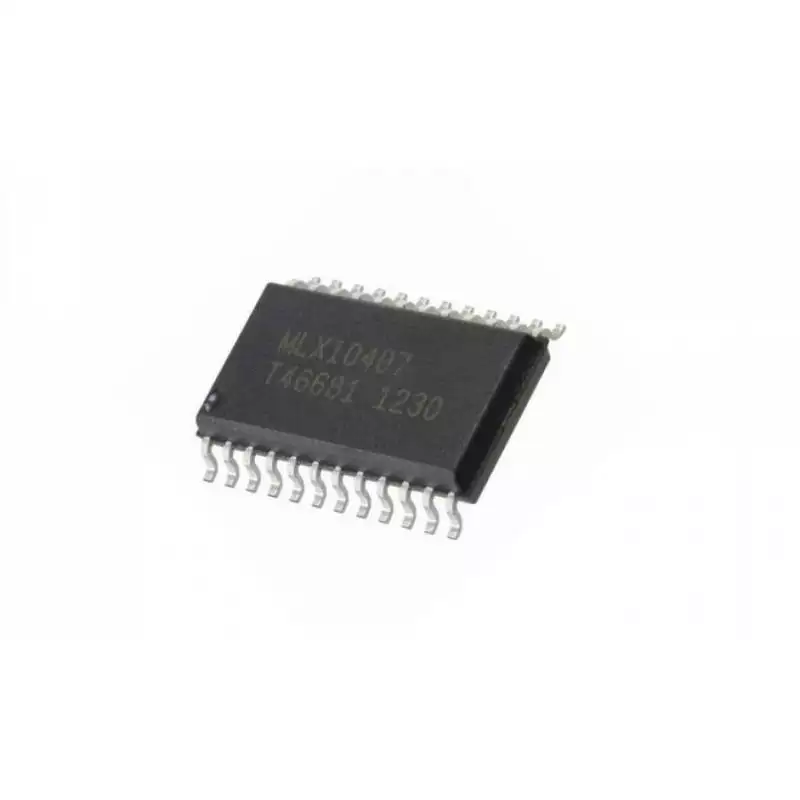

Circuito Integrado MLX10407 smd
Id do Produto: 446
The 10407 is a µP peripheral for logometers control using SIN/COS PWM commands. The circuit
controls two independant sets of CMOS power bridges. A ten bits angle is displayed with a 9 bits per
quadrant resolution PWM whose frequency is set by a crystal oscillator. A power-on self test detects open or
short-circuits outputs for each logometer and a real time angle tracking avoids display errors.
The 10407 can also drive three small angle logometers (90°).
The communication with the µP is done via a three wires serial link.
The 10407 outputs an error status on a special pin.
controls two independant sets of CMOS power bridges. A ten bits angle is displayed with a 9 bits per
quadrant resolution PWM whose frequency is set by a crystal oscillator. A power-on self test detects open or
short-circuits outputs for each logometer and a real time angle tracking avoids display errors.
The 10407 can also drive three small angle logometers (90°).
The communication with the µP is done via a three wires serial link.
The 10407 outputs an error status on a special pin.
