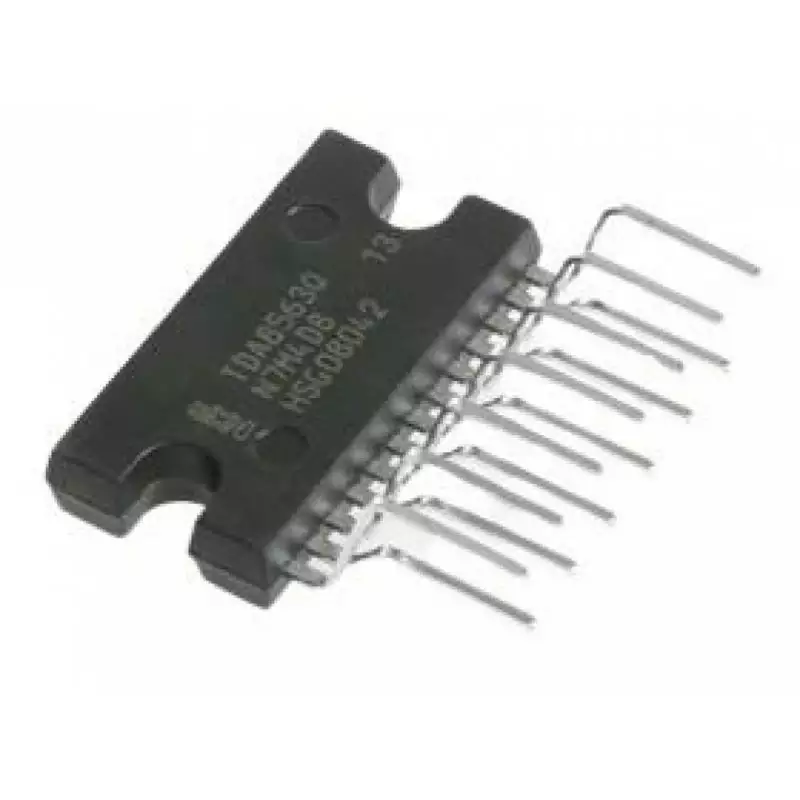

CI TDA8563

The TDA8563AQ is an integrated class-B output amplifier
in a 13-lead single-in-line (SIL) power package.
It contains 2 × 40 W/2 ? amplifiers in a BTL configuration.
The device is primarily developed for car radio
applications.
Philips Semiconductors
Requires very few external components
• High output power
• 4 ? and 2 ? load impedance
• Low output offset voltage
• Fixed gain
• Diagnostic facility (distortion, short-circuit and
temperature detection)
• Good ripple rejection
• Mode select switch (operating, mute and standby)
• Load dump protection
• Short-circuit safe to ground, to VP and across the load
• Low power dissipation in any short-circuit condition
