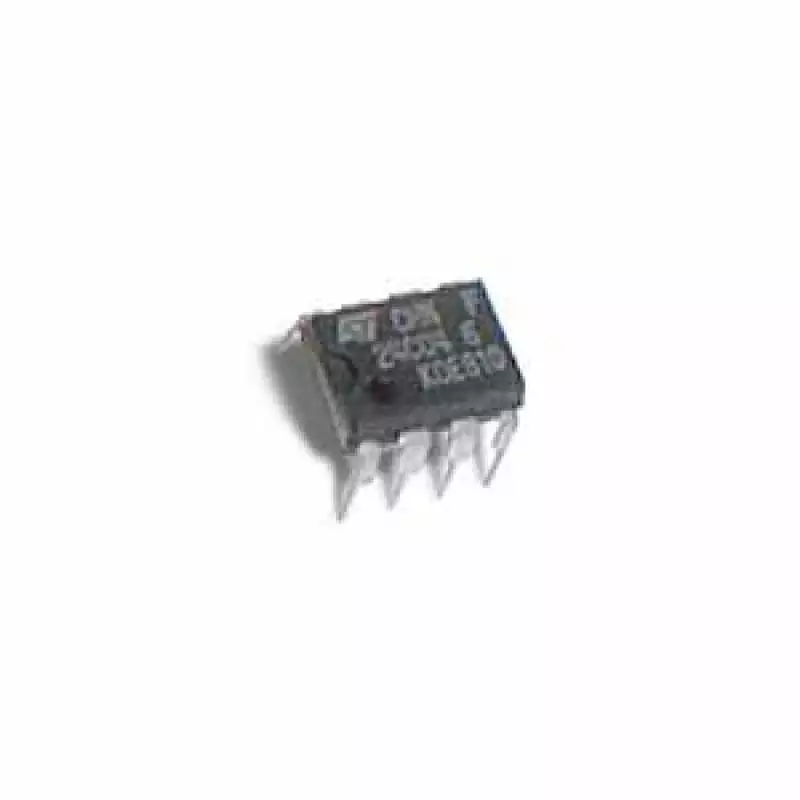

CI ST24C04
Id do Produto: 285
4 Kbit Serial I2C Bus EEPROM with User-Defined Block Write Protection
1 MILLION ERASE/WRITE CYCLES with 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE: to 5.5V for ST24x04 versions to 5.5V for ST25x04 versions HARDWARE WRITE CONTROL VERSIONS: ST24W04 and ST25W04 PROGRAMMABLE WRITE PROTECTION TWO WIRE SERIAL INTERFACE, FULLY I2C BUS COMPATIBLE BYTE and MULTIBYTE WRITE (up to 4 BYTES) PAGE WRITE (up to 8 BYTES) BYTE, RANDOM and SEQUENTIAL READ MODES SELF TIMED PROGRAMMING CYCLE AUTOMATIC ADDRESS INCREMENTING ENHANCED ESD/LATCH UP PERFORMANCES
DESCRIPTION This specification covers a range of 4 Kbits I2C bus EEPROM products, the ST24/25C04 and the ST24/25W04. In the text, products are referred as ST24/25x04, where "x" is: "C" for Standard version and "W" for hardware Write Control version. Table 1. Signal Names
PRE E1-E2 SDA SCL MODE WC VCC VSS Write Protect Enable Chip Enable Inputs Serial Data Address Input/Output Serial Clock Multibyte/Page Write Mode (C version) Write Control (W version) Supply Voltage Ground
1 MILLION ERASE/WRITE CYCLES with 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE: to 5.5V for ST24x04 versions to 5.5V for ST25x04 versions HARDWARE WRITE CONTROL VERSIONS: ST24W04 and ST25W04 PROGRAMMABLE WRITE PROTECTION TWO WIRE SERIAL INTERFACE, FULLY I2C BUS COMPATIBLE BYTE and MULTIBYTE WRITE (up to 4 BYTES) PAGE WRITE (up to 8 BYTES) BYTE, RANDOM and SEQUENTIAL READ MODES SELF TIMED PROGRAMMING CYCLE AUTOMATIC ADDRESS INCREMENTING ENHANCED ESD/LATCH UP PERFORMANCES
DESCRIPTION This specification covers a range of 4 Kbits I2C bus EEPROM products, the ST24/25C04 and the ST24/25W04. In the text, products are referred as ST24/25x04, where "x" is: "C" for Standard version and "W" for hardware Write Control version. Table 1. Signal Names
PRE E1-E2 SDA SCL MODE WC VCC VSS Write Protect Enable Chip Enable Inputs Serial Data Address Input/Output Serial Clock Multibyte/Page Write Mode (C version) Write Control (W version) Supply Voltage Ground
