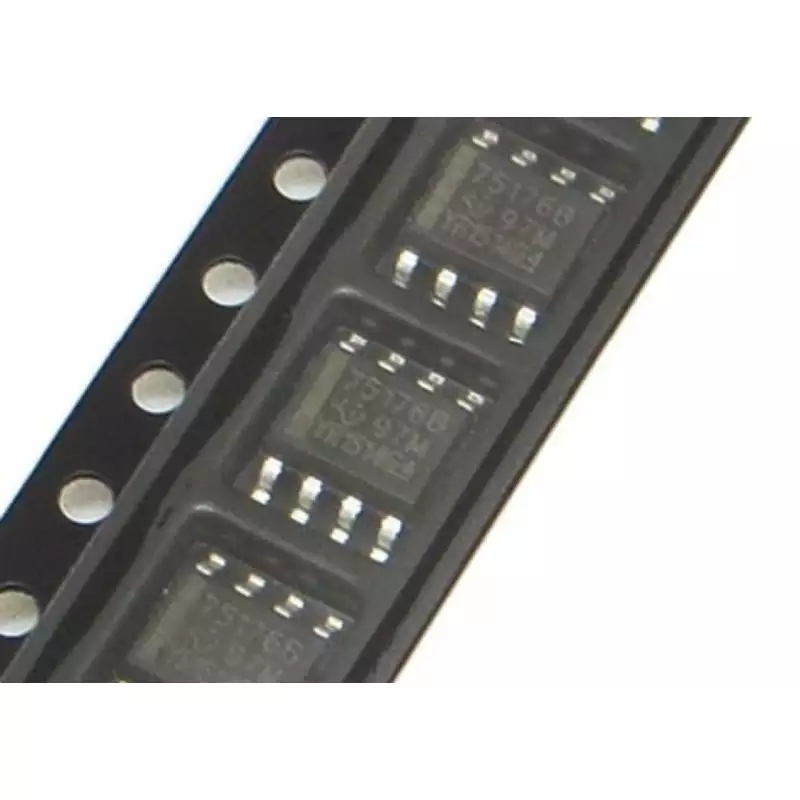

CI SN75176 SMD
Id do Produto: 424
SN75176A
DIFFERENTIAL BUS TRANSCEIVER
Bidirectional Transceiver
Meets or Exceeds the Requirements of
ANSI Standards EIA/TIA-422-B and ITU
Recommendation V.11
Designed for Multipoint Transmission on
Long Bus Lines in Noisy Environments
3-State Driver and Receiver Outputs
Individual Driver and Receiver Enables
Wide Positive and Negative Input/Output
Bus Voltage Ranges
Driver Output Capability... ±60 mA Max
Thermal-Shutdown Protection
Driver Positive- and Negative-Current
Limiting
Receiver Input Impedance . . . 12 k? Min
Receiver Input Sensitivity... ±200 mV
Receiver Input Hysteresis . . . 50 mV Typ
Operates From Single 5-V Supply
Low Power Requirements
DIFFERENTIAL BUS TRANSCEIVER
Bidirectional Transceiver
Meets or Exceeds the Requirements of
ANSI Standards EIA/TIA-422-B and ITU
Recommendation V.11
Designed for Multipoint Transmission on
Long Bus Lines in Noisy Environments
3-State Driver and Receiver Outputs
Individual Driver and Receiver Enables
Wide Positive and Negative Input/Output
Bus Voltage Ranges
Driver Output Capability... ±60 mA Max
Thermal-Shutdown Protection
Driver Positive- and Negative-Current
Limiting
Receiver Input Impedance . . . 12 k? Min
Receiver Input Sensitivity... ±200 mV
Receiver Input Hysteresis . . . 50 mV Typ
Operates From Single 5-V Supply
Low Power Requirements
