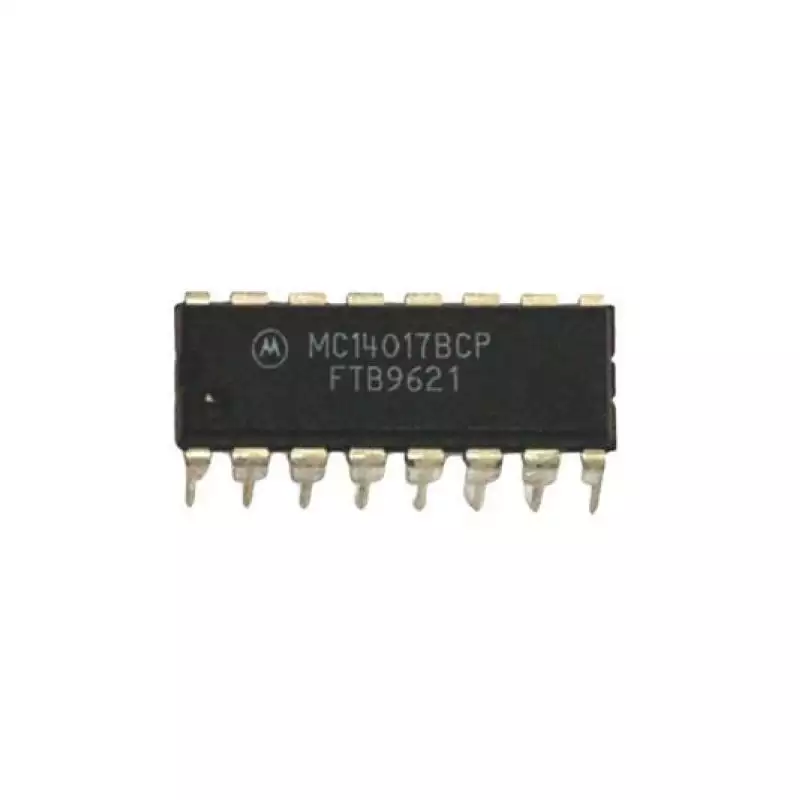

CI MC14017b

Decade Counter
The MC14017B is a five?stage Johnson decade counter with
built?in code converter. High speed operation and spike?free outputs
are obtained by use of a Johnson decade counter design. The ten
decoded outputs are normally low, and go high only at their
appropriate decimal time period. The output changes occur on the
positive?going edge of the clock pulse. This part can be used in
frequency division applications as well as decade counter or decimal
decode display applications.
Features
• Fully Static Operation
• DC Clock Input Circuit Allows Slow Rise Times
• Carry Out Output for Cascading
• Divide?by?N Counting
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low?Power TTL Loads or One Low?Power
Schottky TTL Load Over the Rated Temperature Range
• Pin?for?Pin Replacement for CD4017B
• Triple Diode Protection on All Inputs
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
• This Device is Pb?Free and is RoHS Compliant
