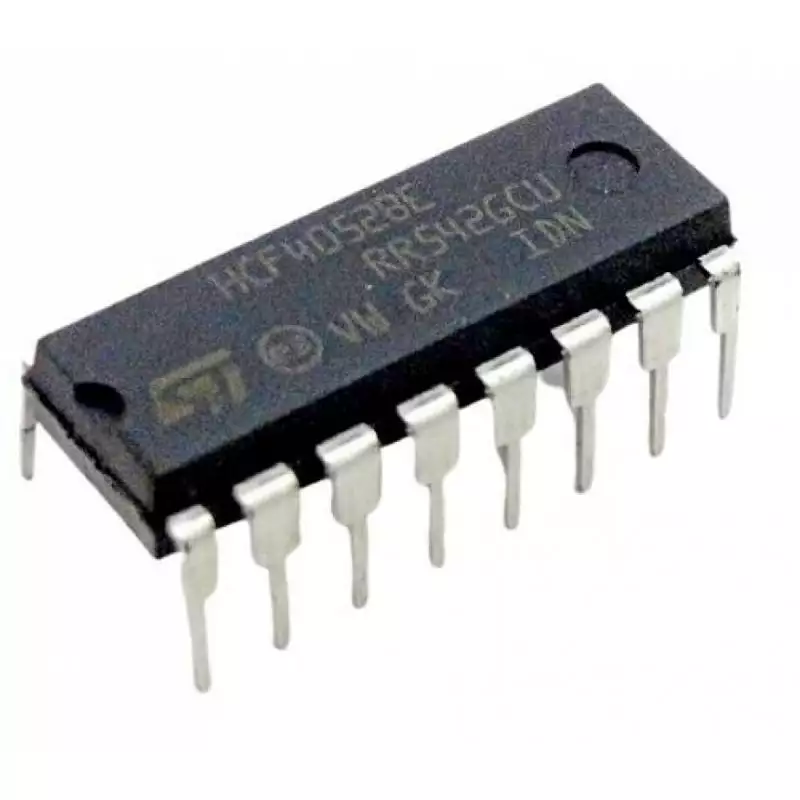

CI Cmos HCF-CD4052
Estoque: 700
Id do Produto: 440
The CD4051BC, CD4052BC, and CD4053BC analog multiplexers/demultiplexers are digitally controlled analog
switches having low “ON” impedance and very low “OFF”
leakage currents. Control of analog signals up to 15Vp-p
can be achieved by digital signal amplitudes of 3?15V. For
example, if VDD = 5V, VSS = 0V and VEE = ?5V, analog signals from ?5V to +5V can be controlled by digital inputs of
0?5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD?VSS and VDD?VEE supply
voltage ranges, independent of the logic state of the control
signals. When a logical “1” is present at the inhibit input terminal all channels are “OFF”.
switches having low “ON” impedance and very low “OFF”
leakage currents. Control of analog signals up to 15Vp-p
can be achieved by digital signal amplitudes of 3?15V. For
example, if VDD = 5V, VSS = 0V and VEE = ?5V, analog signals from ?5V to +5V can be controlled by digital inputs of
0?5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD?VSS and VDD?VEE supply
voltage ranges, independent of the logic state of the control
signals. When a logical “1” is present at the inhibit input terminal all channels are “OFF”.
Valor:
Consulte
Estoque: 700
