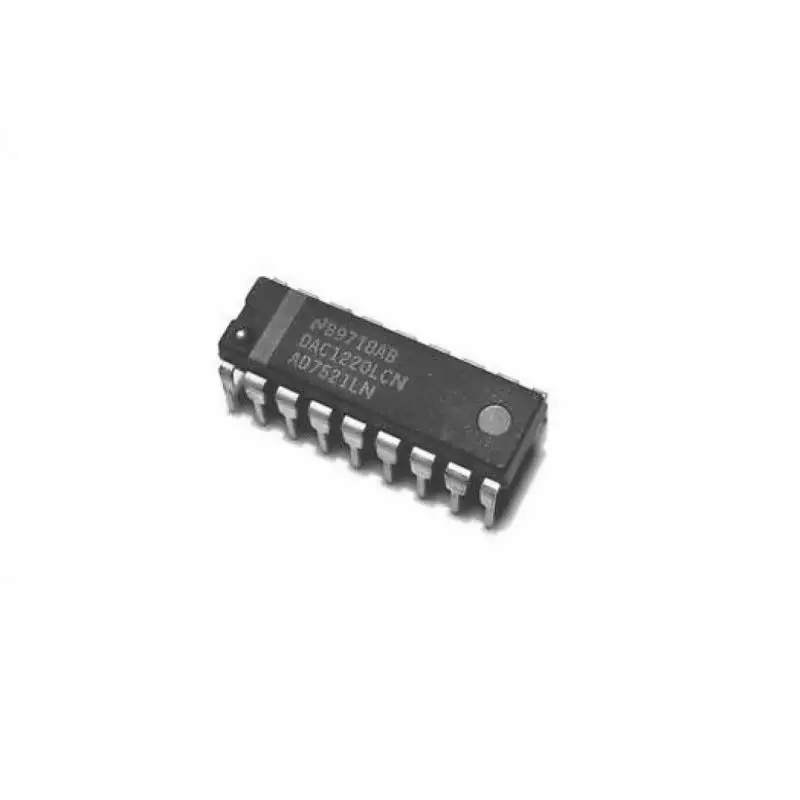

CI AD7521LN
Id do Produto: 292
Features, Applications
The AD7520 and AD7521 are monolithic, high accuracy, low cost 10-bit and 12-bit resolution, multiplying digital-to-analog converters (DAC). Intersil's thin-film on CMOS processing gives to 10-bit accuracy with TTL/CMOS compatible operation. Digital inputs are fully protected against static discharge by diodes to ground and positive supply. Typical applications include digital/analog interfacing, multiplication and division, programmable power supplies, CRT character generation, digitally controlled gain circuits, integrators and attenuators, etc.
Features
AD7520, 10-Bit Resolution; 8-Bit Linearity AD7521, 12-Bit Resolution; 10-Bit Linearity Low Power Dissipation (Max). 20mW Low Nonlinearity Tempco 2ppm of FSR/oC Current Settling Time 0.05% of FSR. 1.0µs Supply Voltage Range. to +15V TTL/CMOS Compatible Full Input Static Protection
The AD7520 and AD7521 are monolithic, high accuracy, low cost 10-bit and 12-bit resolution, multiplying digital-to-analog converters (DAC). Intersil's thin-film on CMOS processing gives to 10-bit accuracy with TTL/CMOS compatible operation. Digital inputs are fully protected against static discharge by diodes to ground and positive supply. Typical applications include digital/analog interfacing, multiplication and division, programmable power supplies, CRT character generation, digitally controlled gain circuits, integrators and attenuators, etc.
Features
AD7520, 10-Bit Resolution; 8-Bit Linearity AD7521, 12-Bit Resolution; 10-Bit Linearity Low Power Dissipation (Max). 20mW Low Nonlinearity Tempco 2ppm of FSR/oC Current Settling Time 0.05% of FSR. 1.0µs Supply Voltage Range. to +15V TTL/CMOS Compatible Full Input Static Protection
