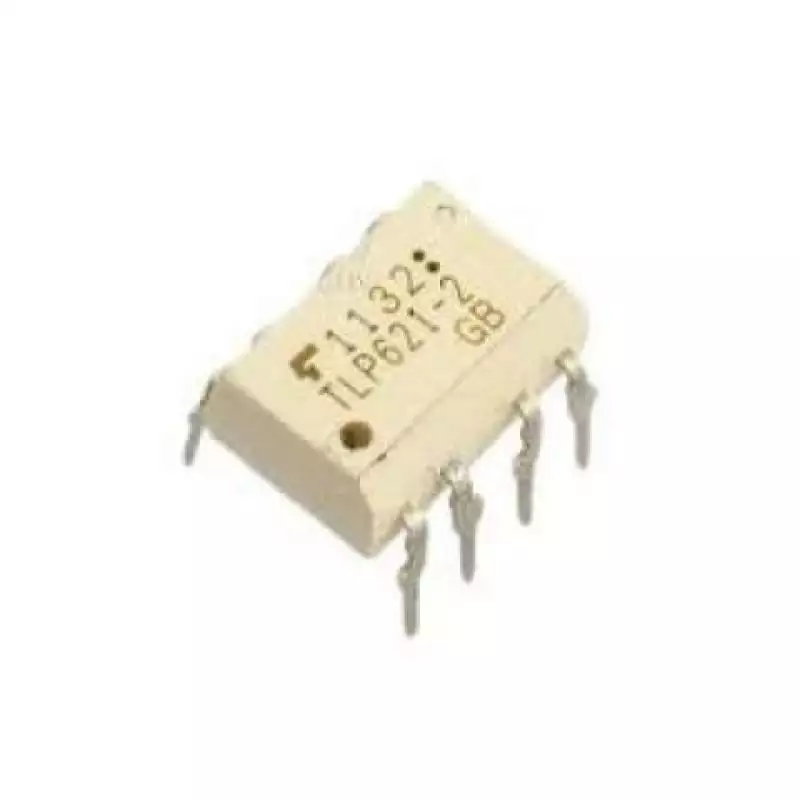

Acoplador TLP621-2
Id do Produto: 414
The TOSHIBA TLP621, ?2 and ?4 consists of a photo?transistor
optically coupled to an infrared emitting diode.
The TLP621?2 offers two isolated channels in an eight lead plastic DIP,
which the TLP621?4 provides four isolated channels in a sixteen plastic
DIP.
Collector?emitter voltage: 55 V (min.)
• Current transfer ratio: 50% (min.)
Rank GB: 100% (min.)
• Isolation voltage : 5000Vrms(min)
• UL-recognized: UL 1577, File No.E67349
• cUL-approved: CSA Component Acceptance Service No.5A
File No.E67349
• VDE-approved: EN 60747-5-5
optically coupled to an infrared emitting diode.
The TLP621?2 offers two isolated channels in an eight lead plastic DIP,
which the TLP621?4 provides four isolated channels in a sixteen plastic
DIP.
Collector?emitter voltage: 55 V (min.)
• Current transfer ratio: 50% (min.)
Rank GB: 100% (min.)
• Isolation voltage : 5000Vrms(min)
• UL-recognized: UL 1577, File No.E67349
• cUL-approved: CSA Component Acceptance Service No.5A
File No.E67349
• VDE-approved: EN 60747-5-5
