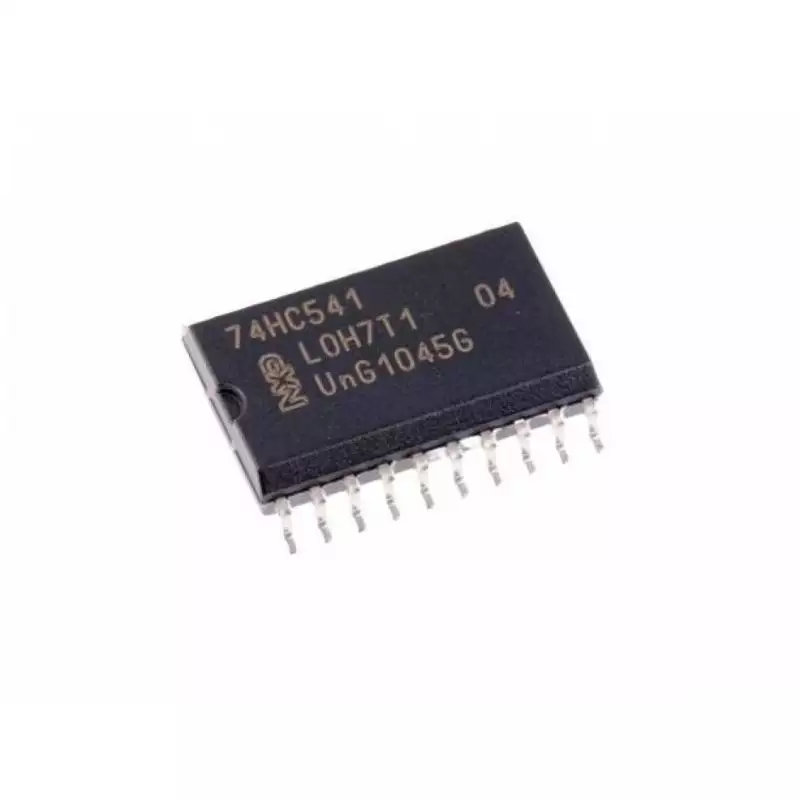

74HC541 SMD
Id do Produto: 344
Octal Buffers and Line Drivers With 3-State Outputs
1• Wide Operating Voltage Range of 2 V to 6 V
• High-Current 3-State Outputs Drive Bus Lines
Directly or Up to 15 LSTTL Loads
• Low Power Consumption, 80-µA Maximum ICC
• Typical tpd = 10 ns
• ±6-mA Output Drive at 5 V
• Low Input Current of 1 µA Maximum
• Data Flow-Through Pinout (All Inputs on Opposite
Side From Outputs)
2 Applications
• LEDs
• Servers
• PCs and Notebooks
• Wearable Health and Wellness Devices
1• Wide Operating Voltage Range of 2 V to 6 V
• High-Current 3-State Outputs Drive Bus Lines
Directly or Up to 15 LSTTL Loads
• Low Power Consumption, 80-µA Maximum ICC
• Typical tpd = 10 ns
• ±6-mA Output Drive at 5 V
• Low Input Current of 1 µA Maximum
• Data Flow-Through Pinout (All Inputs on Opposite
Side From Outputs)
2 Applications
• LEDs
• Servers
• PCs and Notebooks
• Wearable Health and Wellness Devices
